Thermally broken roof hatches feature R-20+ insulation and a frame and cover design that minimizes heat transfer between interior and exterior metal surfaces. The result is a product that resists harmful condensation and provides superior energy efficiency. The Thermally Broken design is available in all standard BILCO single leaf sizes (S, E, NB, L, F, GS*) and special single leaf sizes are available upon request. (Patent Pending)

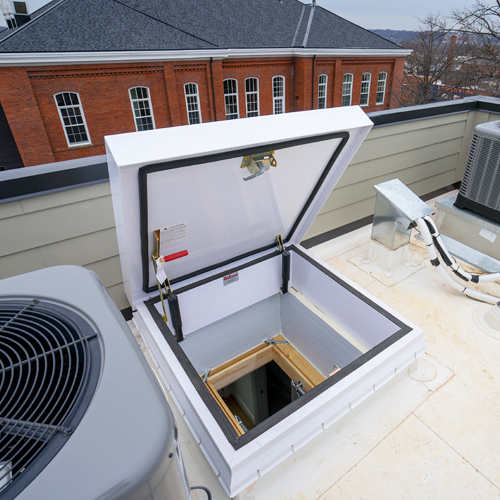

Thermally Broken Roof Hatch

Models: Type S-50TB, E-50TB, NB-50TB, L-50TB, F-50TB, GS-50TB*



Standard Features and Benefits

  • Thermally broken cover and curb reduces heat transfer between interior and exterior surfaces to resist harmful condensation
  • Ozone-friendly polyisocyanurate insulation (R-20+) provides superior energy efficiency
  • Special EPDM gasketing with enhanced weather and wind resistance
  • Meets LEED® standards for recycled content
  • High solar reflective index (SRI)
  • Available in all Bilco standard roof hatch sizes and special sizes are available upon request



Guide Specifications

  • Material: Cover and frame are 11 gauge (2.3 mm) aluminum.
  • Cover: Brakeformed, hollow-metal design with 3" (75 mm) concealed polyisocyanurate insulation (R Value of 20+), 5" (100 mm) beaded, overlapping flange, fully welded at corners, and internally reinforced for 40 psf (195kg/m2) live load. (See note below for Type GS-50-TB models)
  • Curb: 12" (305 mm) in height with integral capflashing, 3" (75 mm) polyisocyanurate insulation (R Value of 20+), fully welded at corners, and 5-1/2" (114 mm) mounting flange with 7/16" holes (11 mm) provided for securing frame to the roof deck.
  • Gasket: Extruded EPDM rubber gasket permanently adhered to cover.
  • Hinges: Heavy-duty pintle hinges with 3/8" (9 mm) Type 316 stainless steel hinge pins.
  • Latch: Slam latch with interior and exterior turn handles and padlock hasps.
  • Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
  • Finish: Mill finish aluminum
  • Hardware: Type 316 stainless steel hinges. All other hardware is zinc plated/chromate sealed.



* Note: Type GS-50TB models feature a thermally broken curb with R-20+ insulation and a polycarbonate dome cover that does not meet this thermal performance.
