Floor Access Door Models

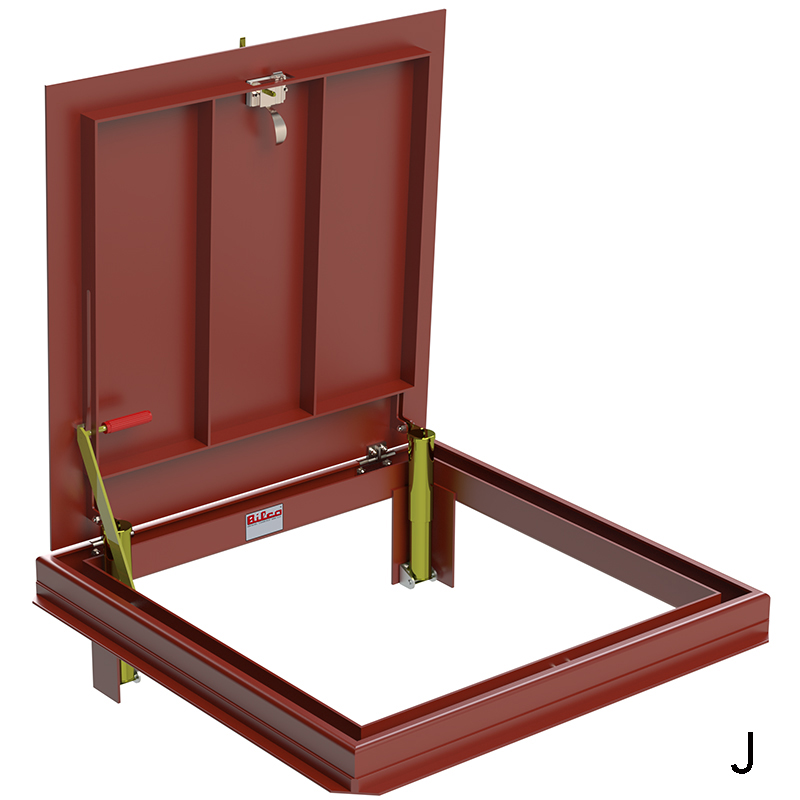

Type J, JD (double leaf)

Standard Features and Benefits

• Engineered with lift assistance for smooth, easy one-hand door operation, regardless of size.
• Automatic hold-open arm locks the cover in the open position to ensure safe egress.
• Constructed with corrosion resistant materials to provide many years of trouble free, dependable service.
• Heavy-duty construction and positive latching mechanism help to prevent unauthorized access.
• Available in a number of standard and special sizes and in stainless steel construction to satisfy any requirement.

Guide Specifications

• Material: Cover and frame are 1/4" (6 mm) steel. (Type 304 or type 316 stainless steel construction available).
• Cover: Diamond-pattern tread plate reinforced for 300 psf (1464 kg/m2) live load.
• Frame: Formed channel frame with full anchor angle welded around the perimeter.
• A 1-1/2" (38mm) drain coupling is welded under the frame for a pipe connection to a dry well or disposal system.
• Hinges: Heavy forged Type 316 stainless steel hinges with 1/4" (6 mm) type 316 stainless steel hinge pins.
• Latch: Type 316 stainless steel slam lock with fixed interior handle and removable exterior turn/lift handle. Latch release is protected by a flush, gasketed, removable screw plug.
• Lift Assistance: Compression spring operators enclosed in telescopic tubes. Automatic hold-open arm with grip handle release.
• Finish: Alkyd base red oxide primer.
• Hardware: Heavy forged brass hinges. Type 316 stainless steel slam lock and fasteners. All other hardware is zinc plated/chromate sealed.

•
•
•
•
•
•

•
